General Description:

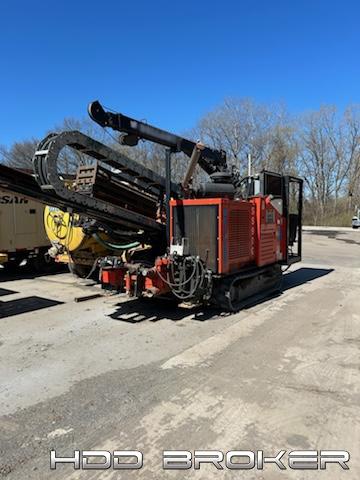

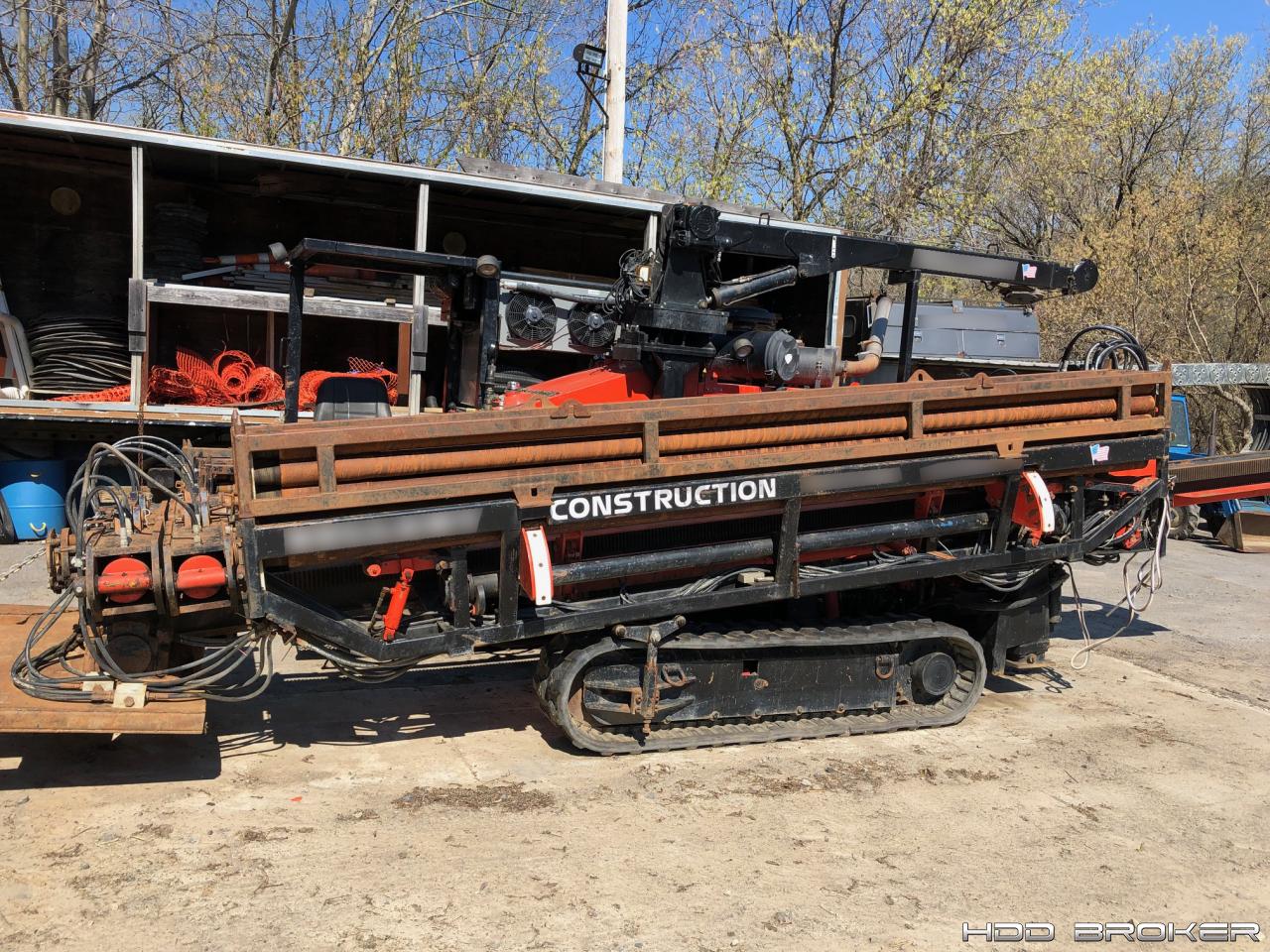

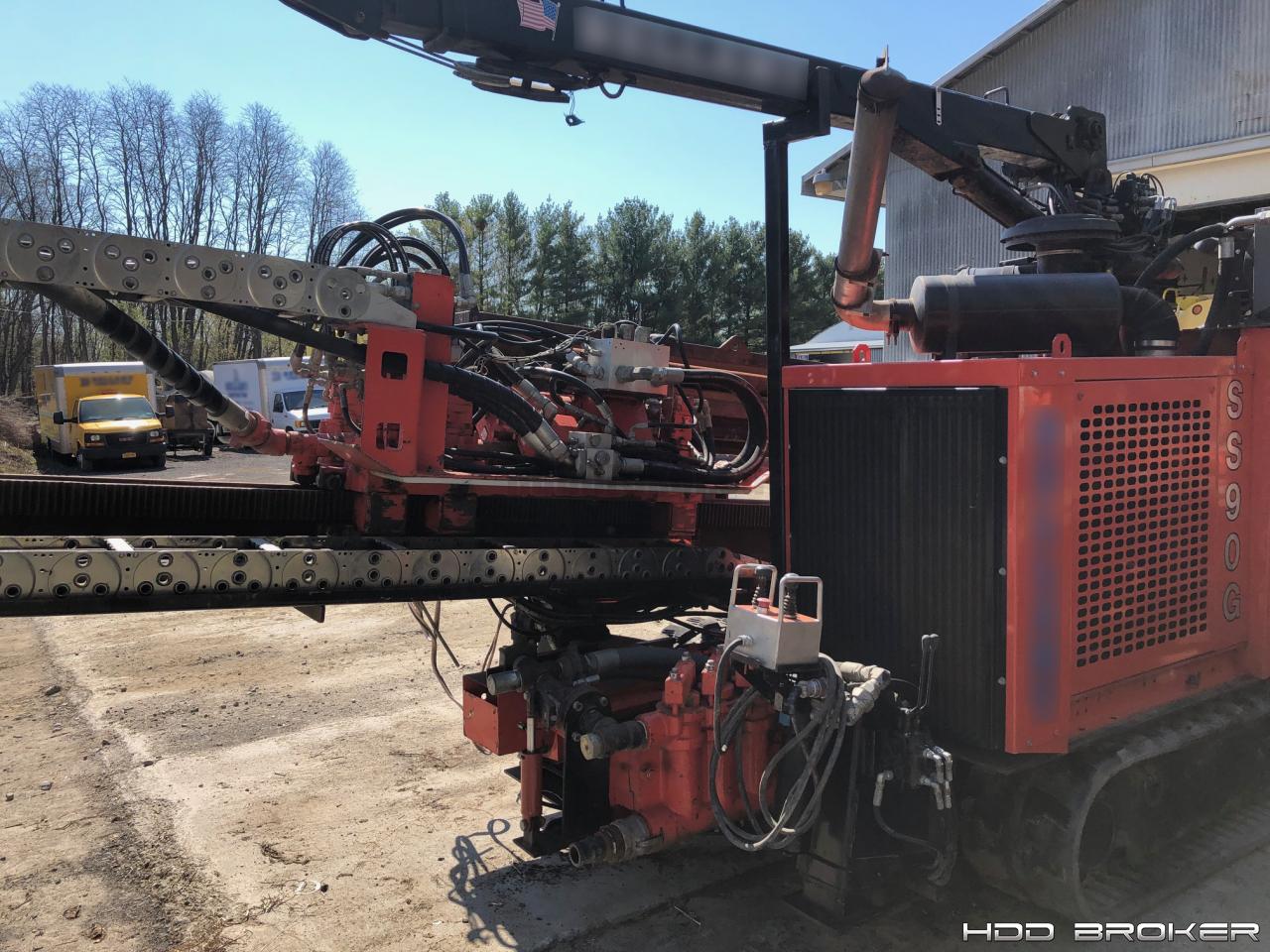

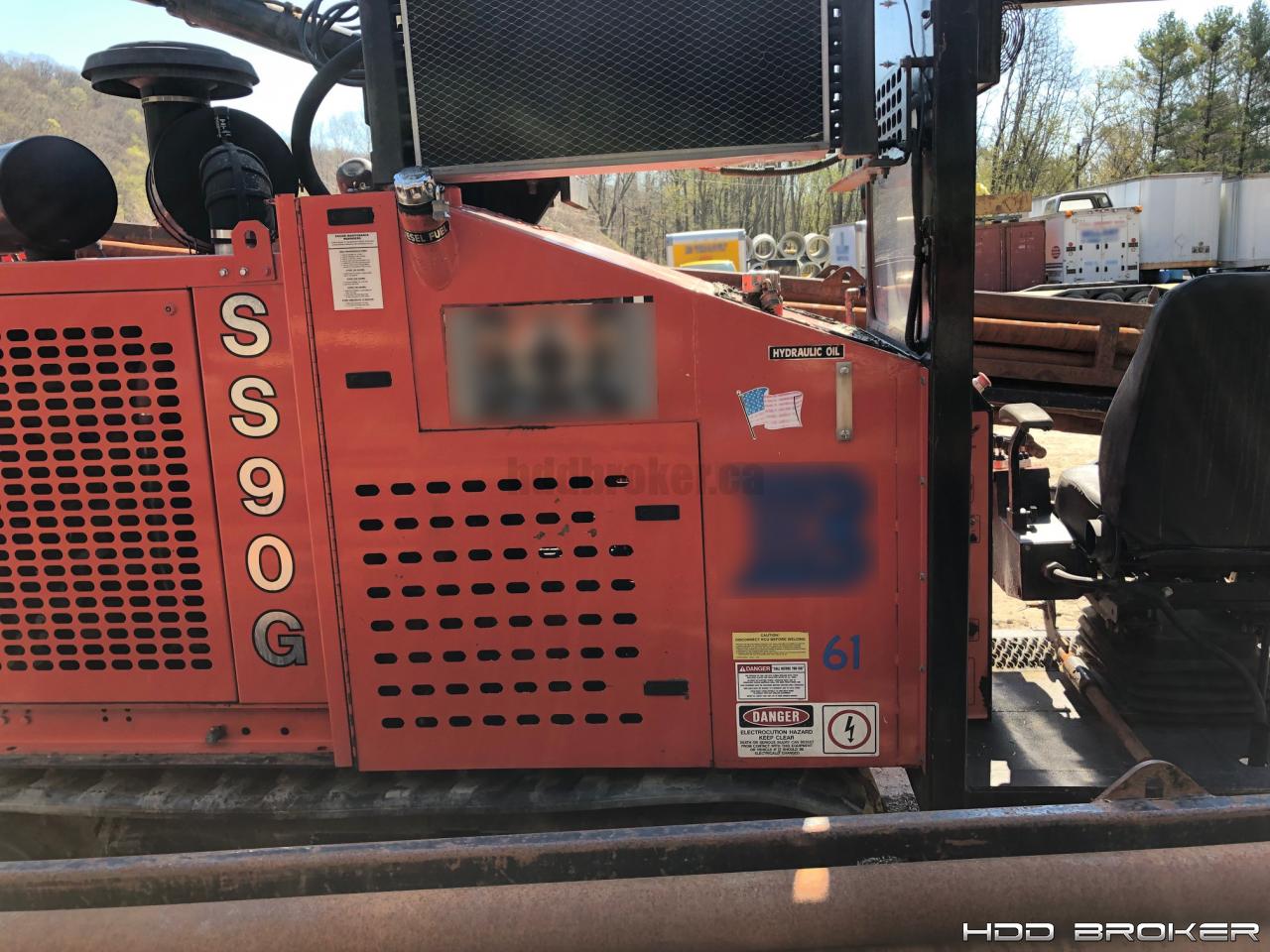

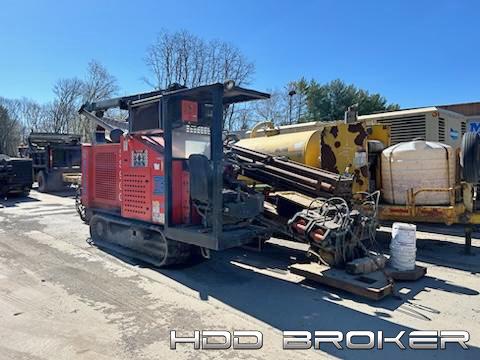

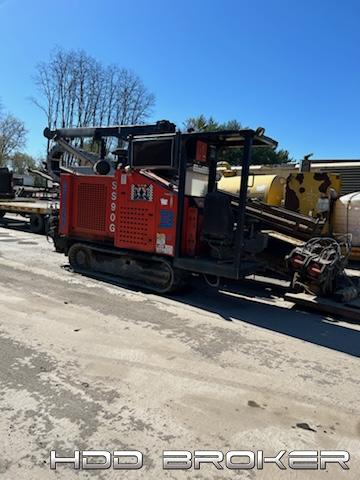

2013 Underground Professionals Inc (UPI) SS90G Directional Drill:

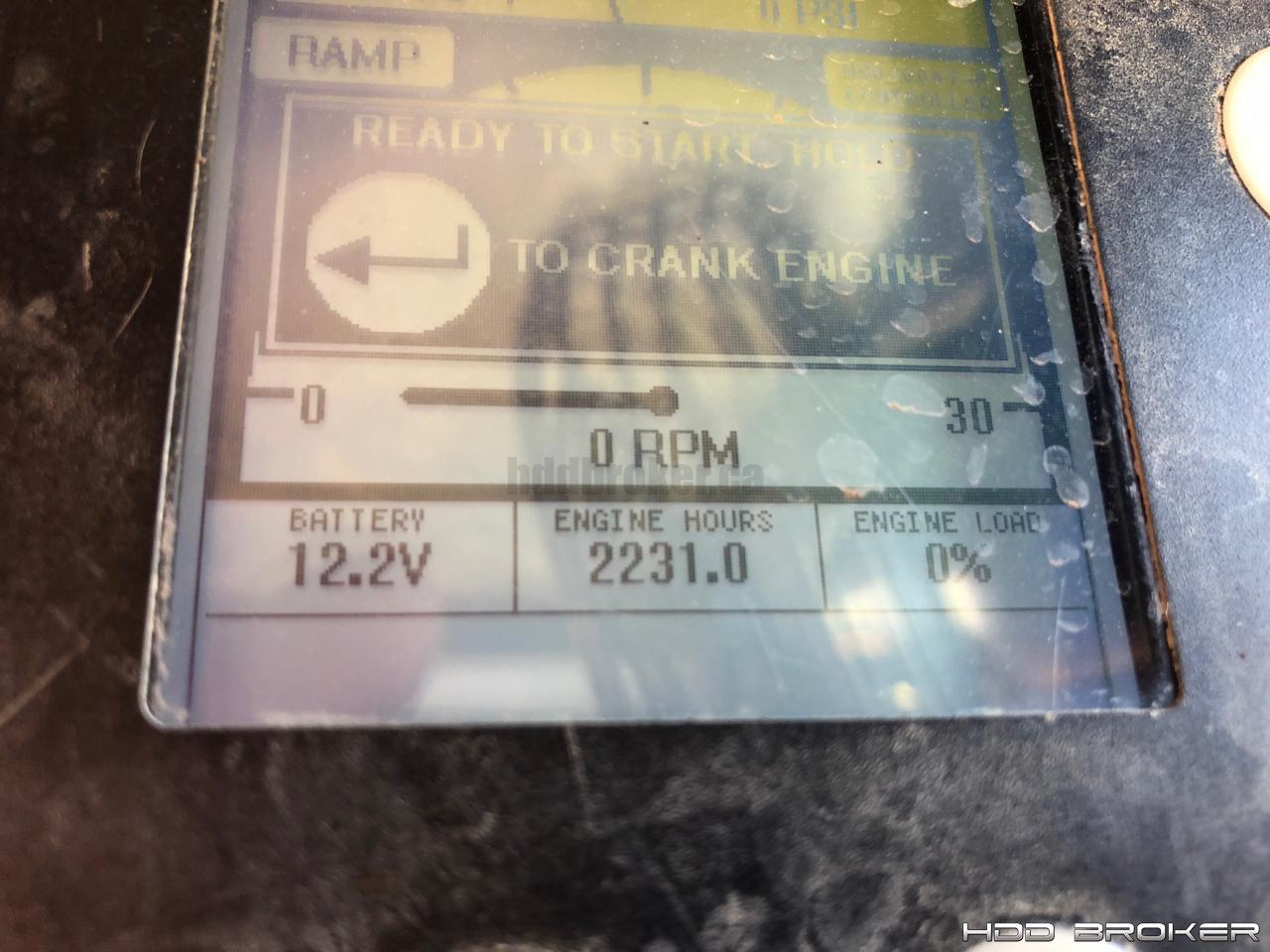

-2231 hours

Pipe:

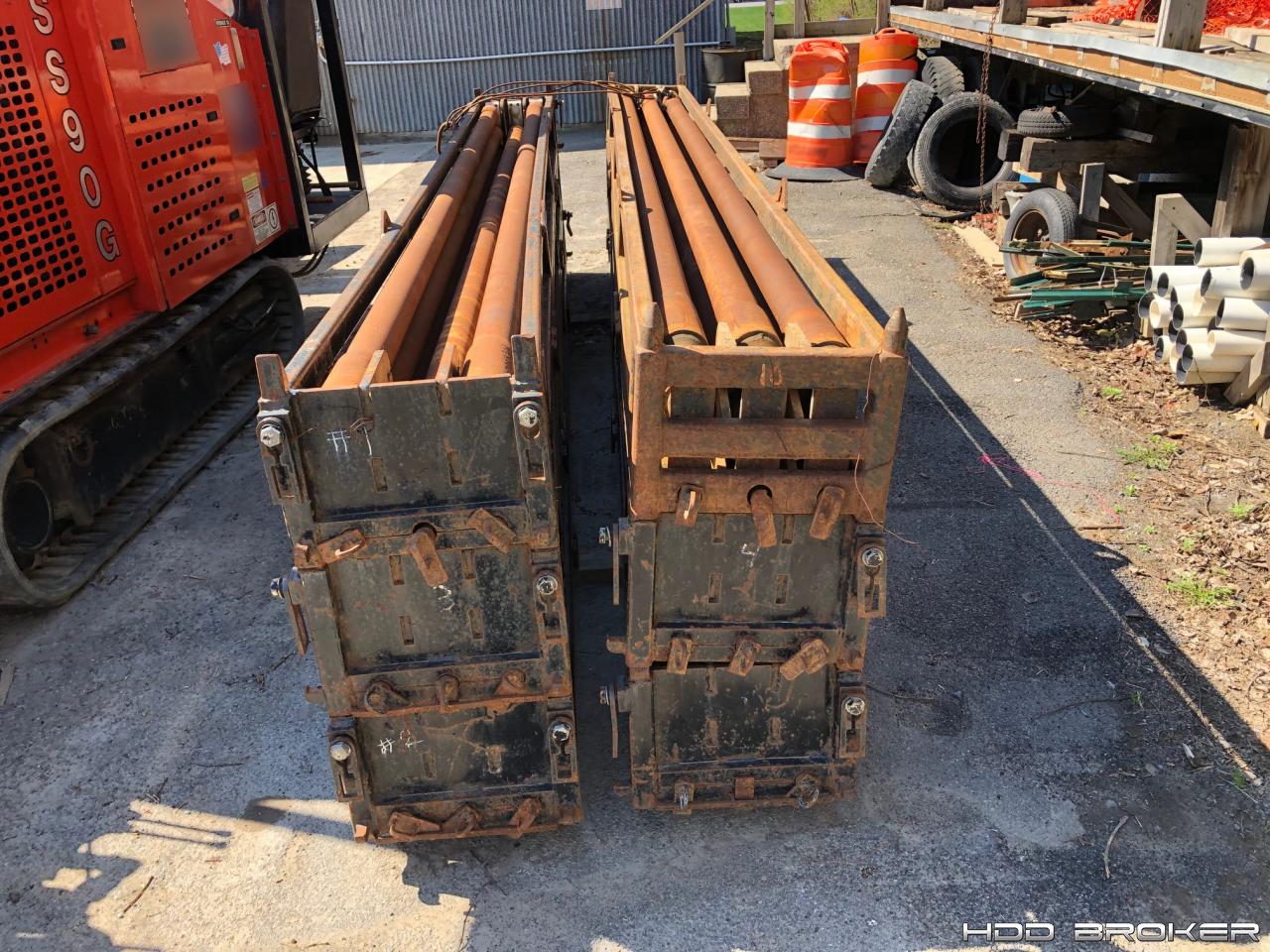

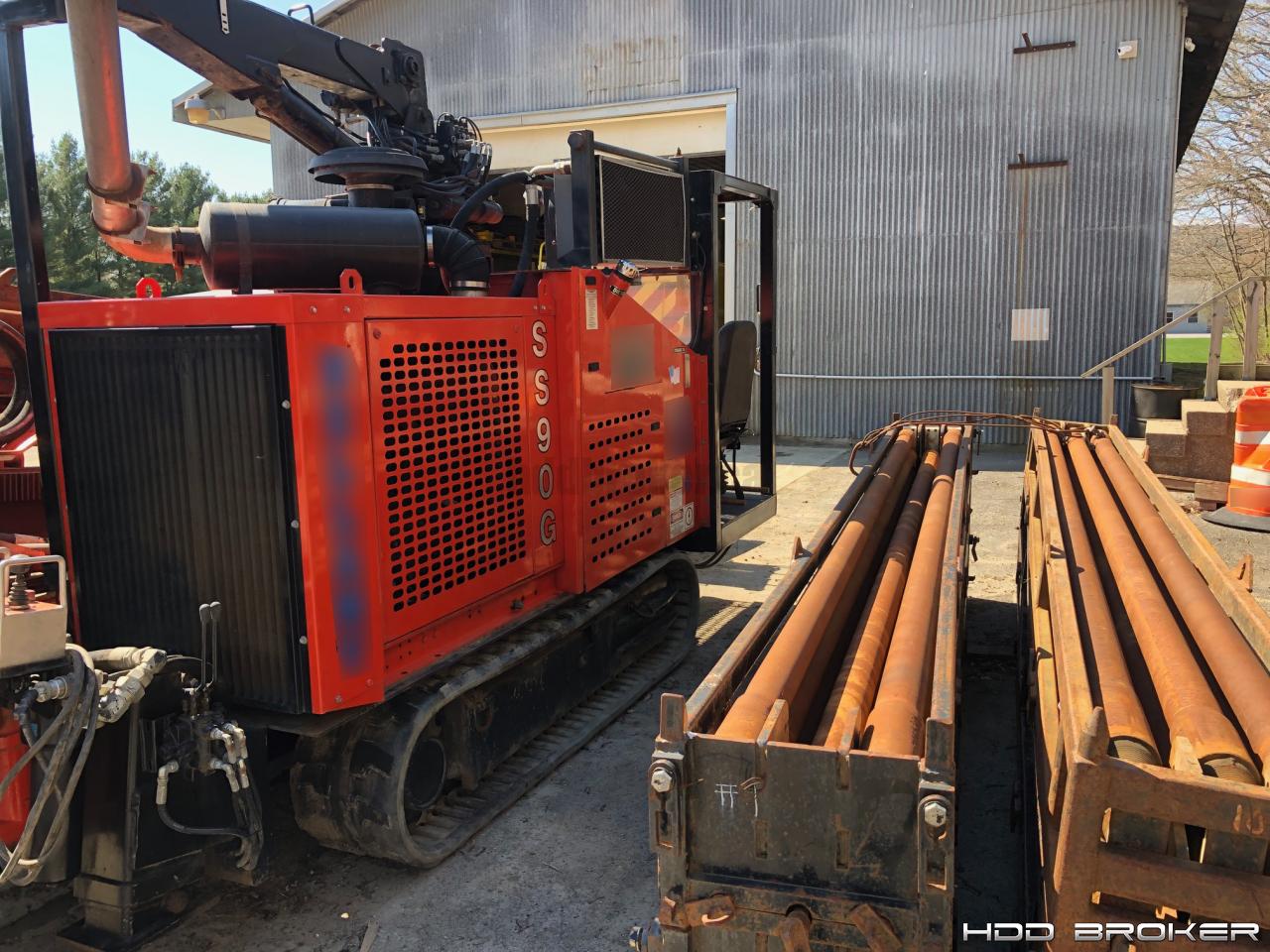

1,215 Feet of Drill Pipe in Baskets:
-15 Foot Lengths

Additional Information:

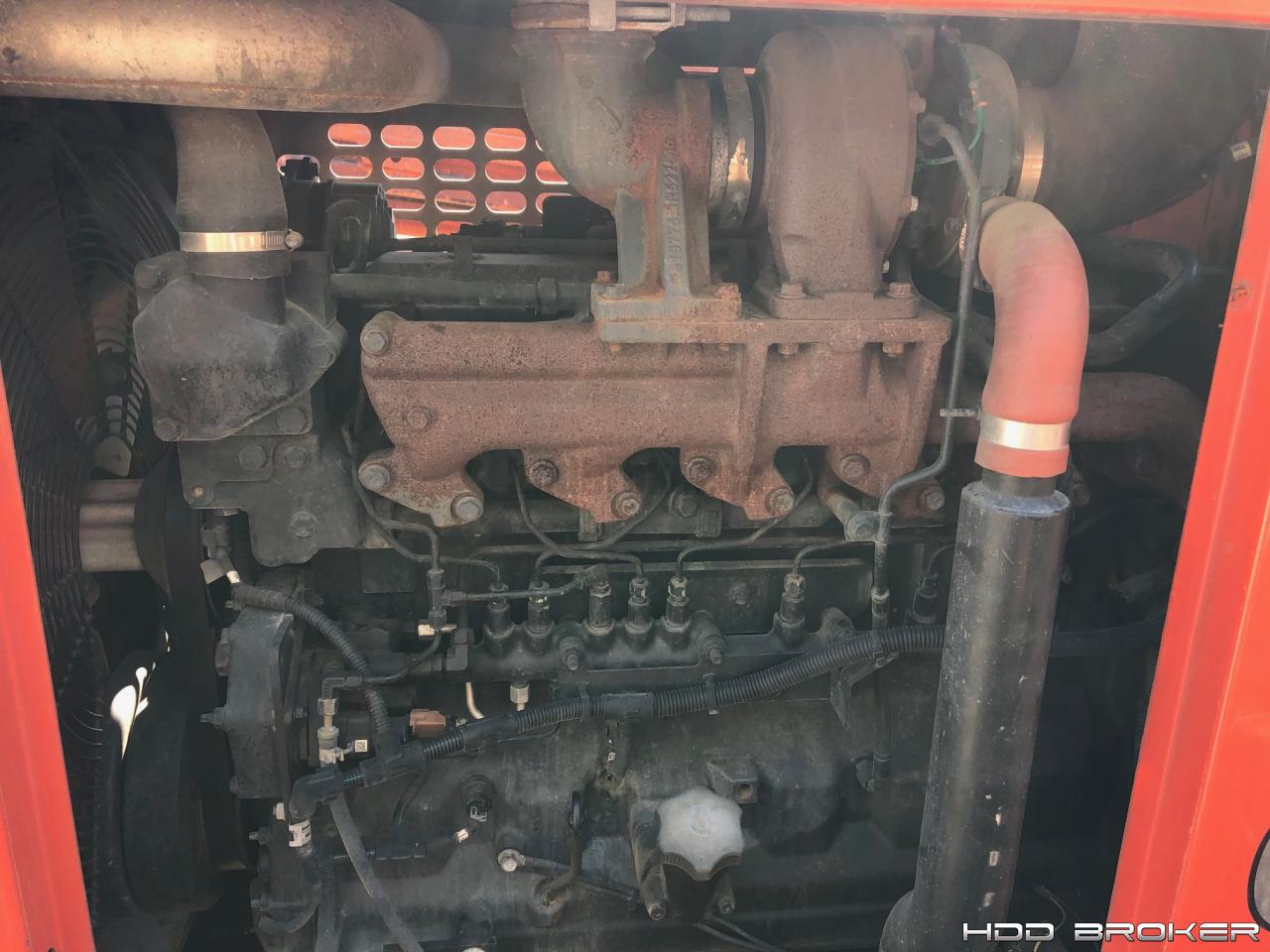

-John Deere 6.8 L Engine.

MANUFACTURES EQUIPMENT SPECIFICATIONS

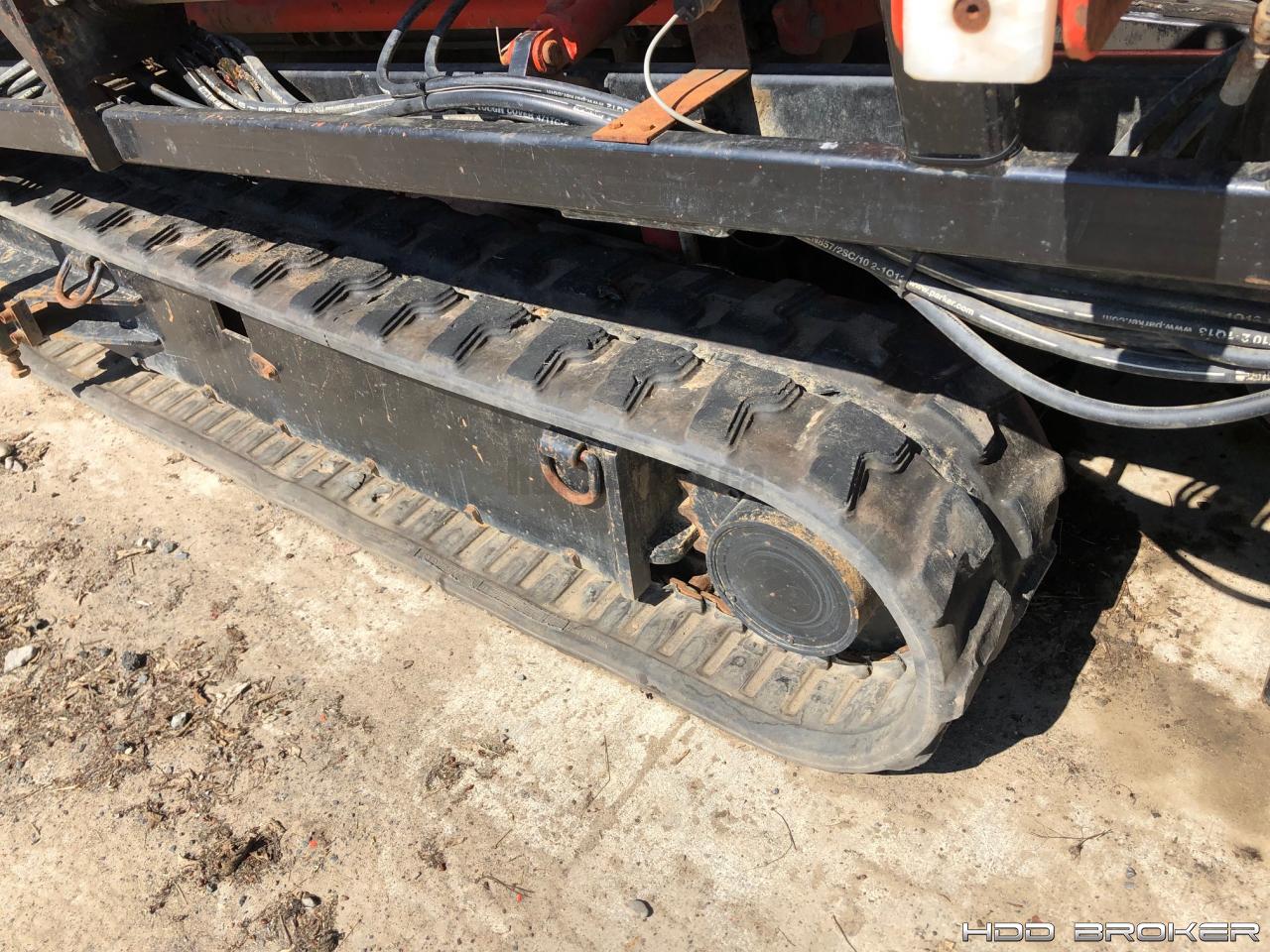

*Rubber Track Mounted,Self - contained drill using 15 foot drill pipe
*Engine: John Deere 6068T - 275 HP. Tier III compliant - Electronic

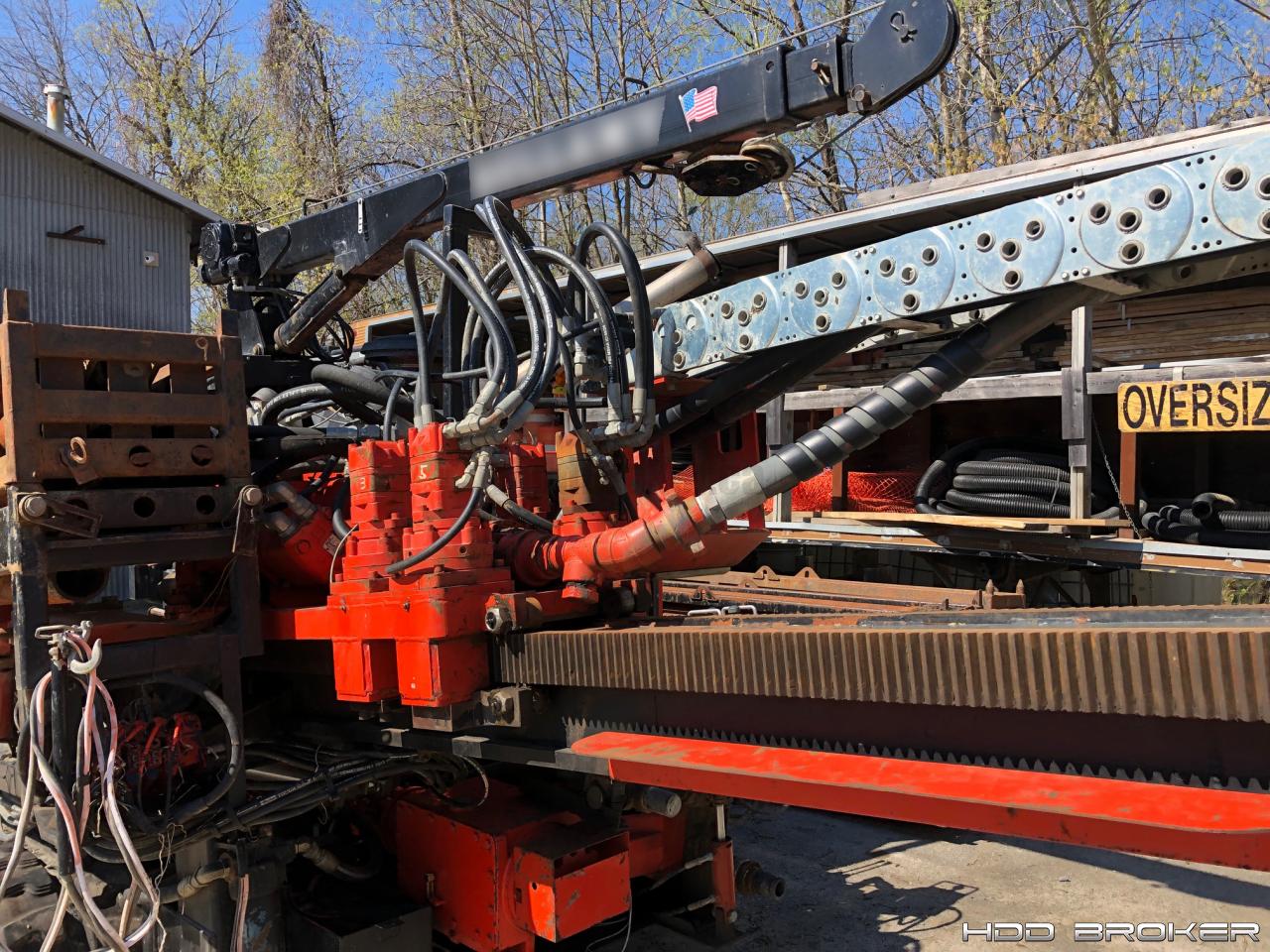

*Rotary Drive - Three Pinion:
-17,000 Ft./lbs Torque @ 45 rpm
-8,500 Ft./lbs Torque @ 95 rpm
*Carriage Drive - Six Pinion - 95,000 lbs. Thrust/Pullback - Two speed
*Full 2 Inch Watercourse through spindle / hose carrier - 300 gpm Cap.

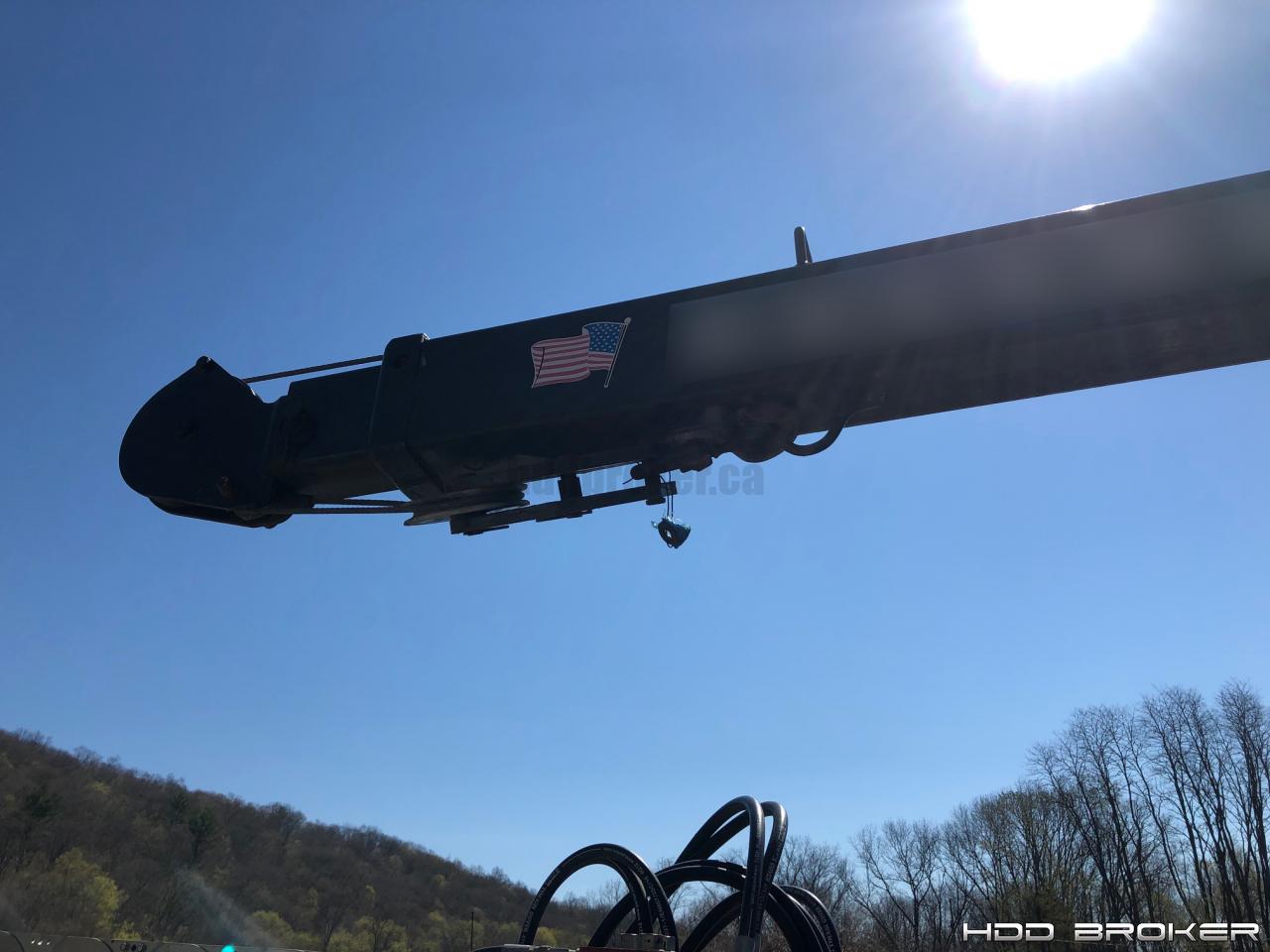

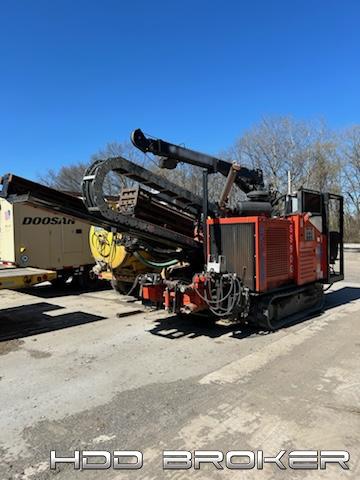

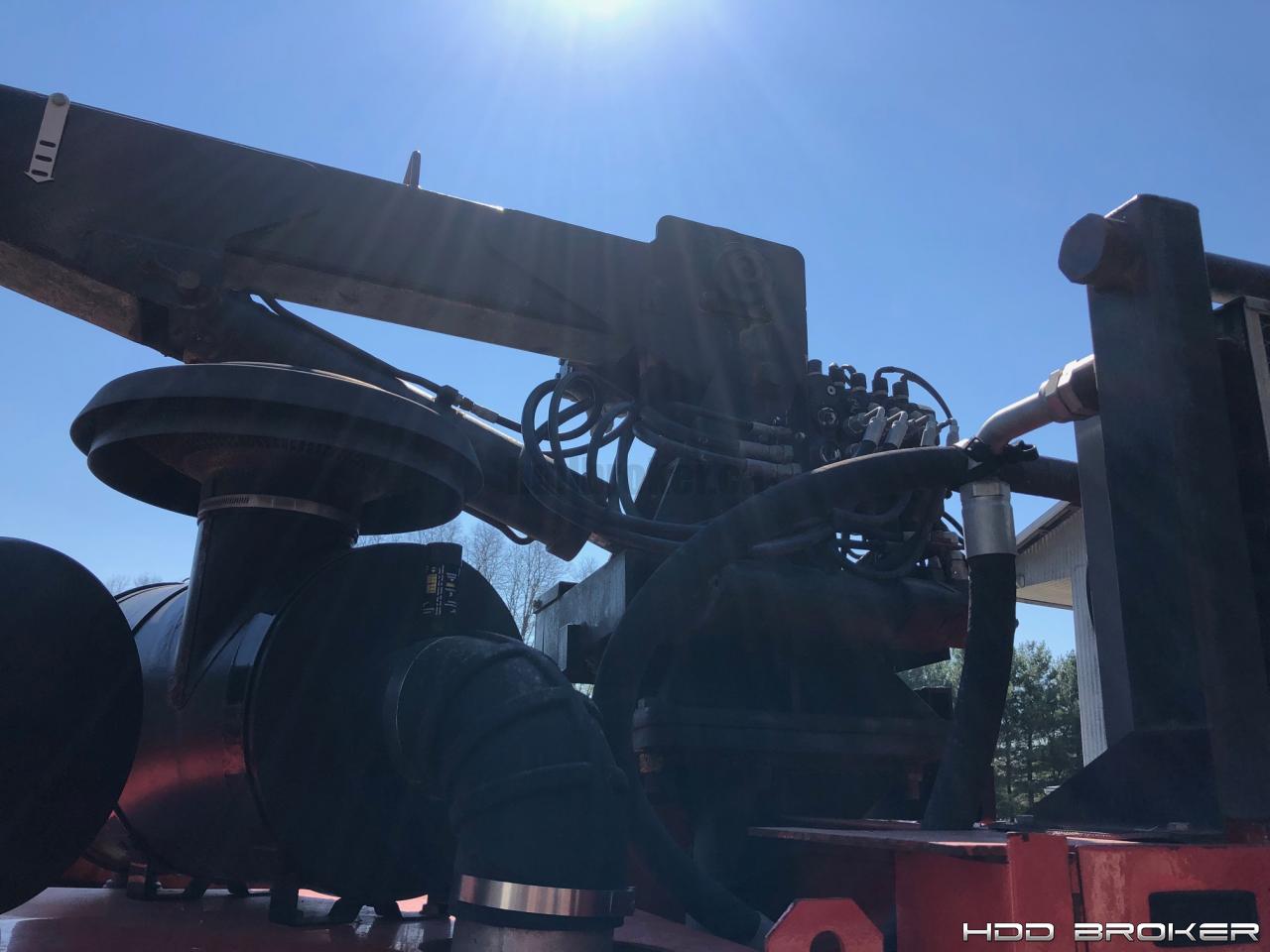

*Radio Remote 6000 lb. Crane

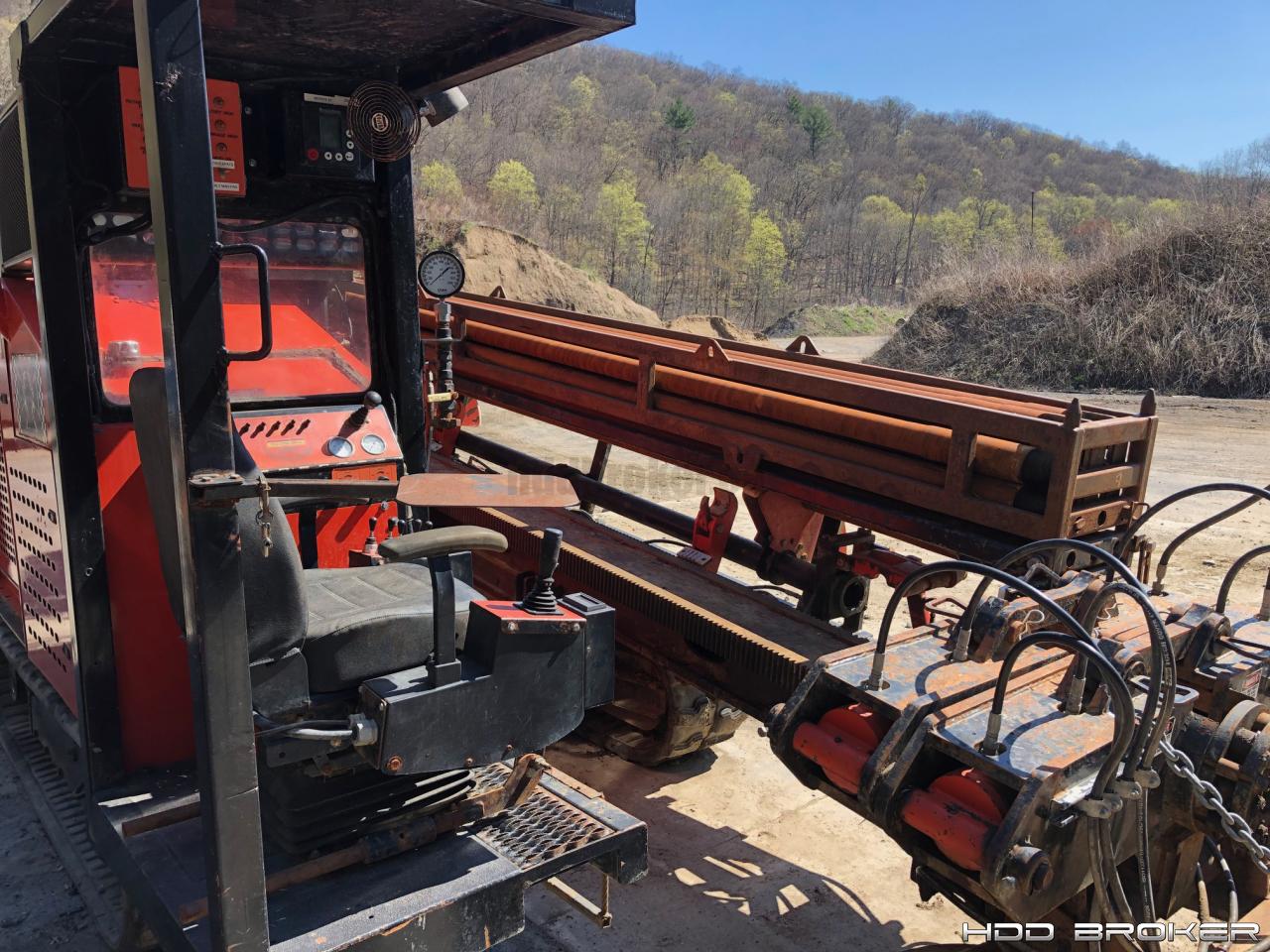

*Integrated Pipe loader
*"Big Dawg" Wrenches with 27,000 ft./lbs Breakout force

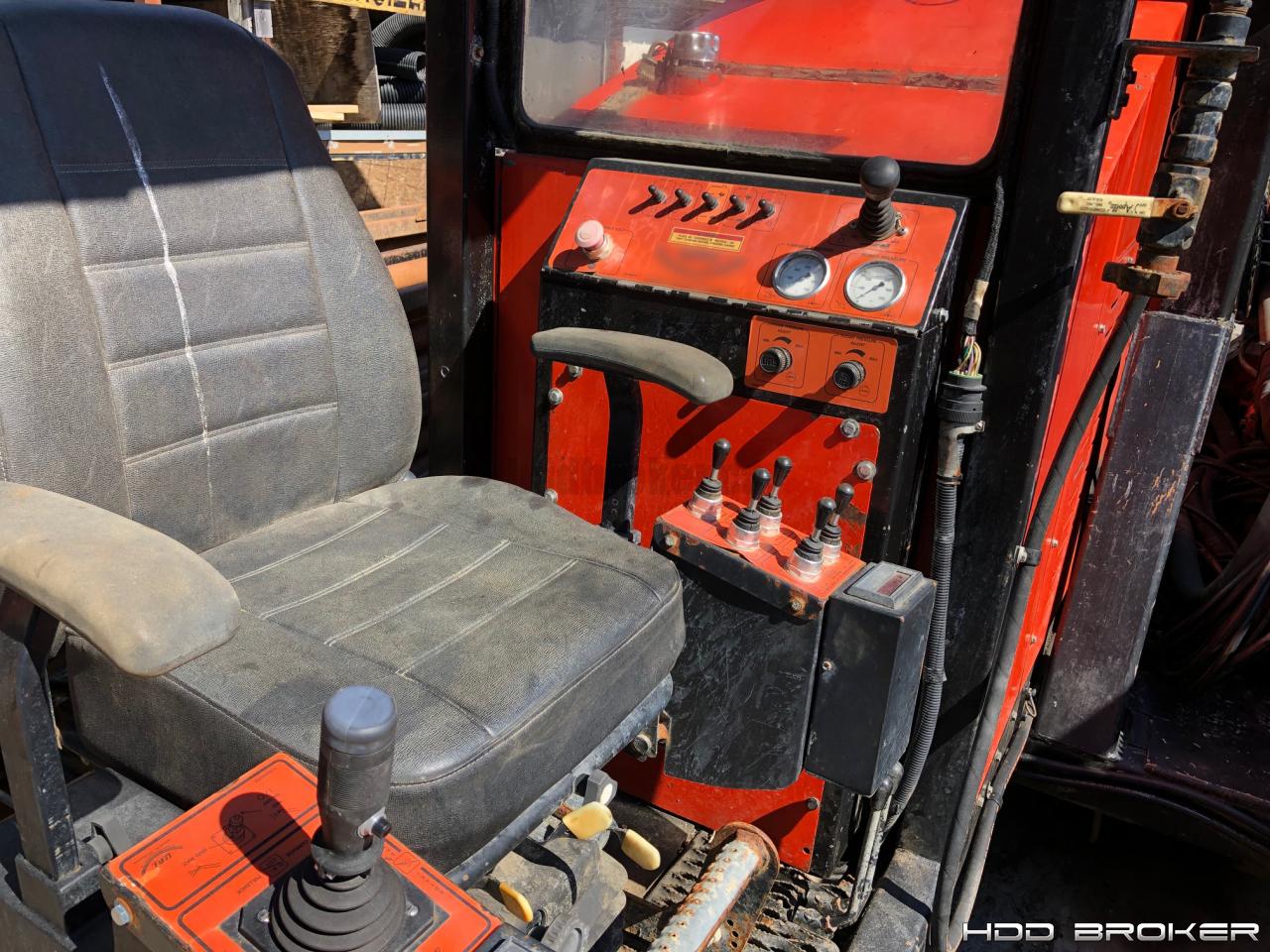

*Digital Flow Meter / RPM Readout
*Wireline ready
*Fluid Pressure Gauge
*Auto Mud Shut-off valve

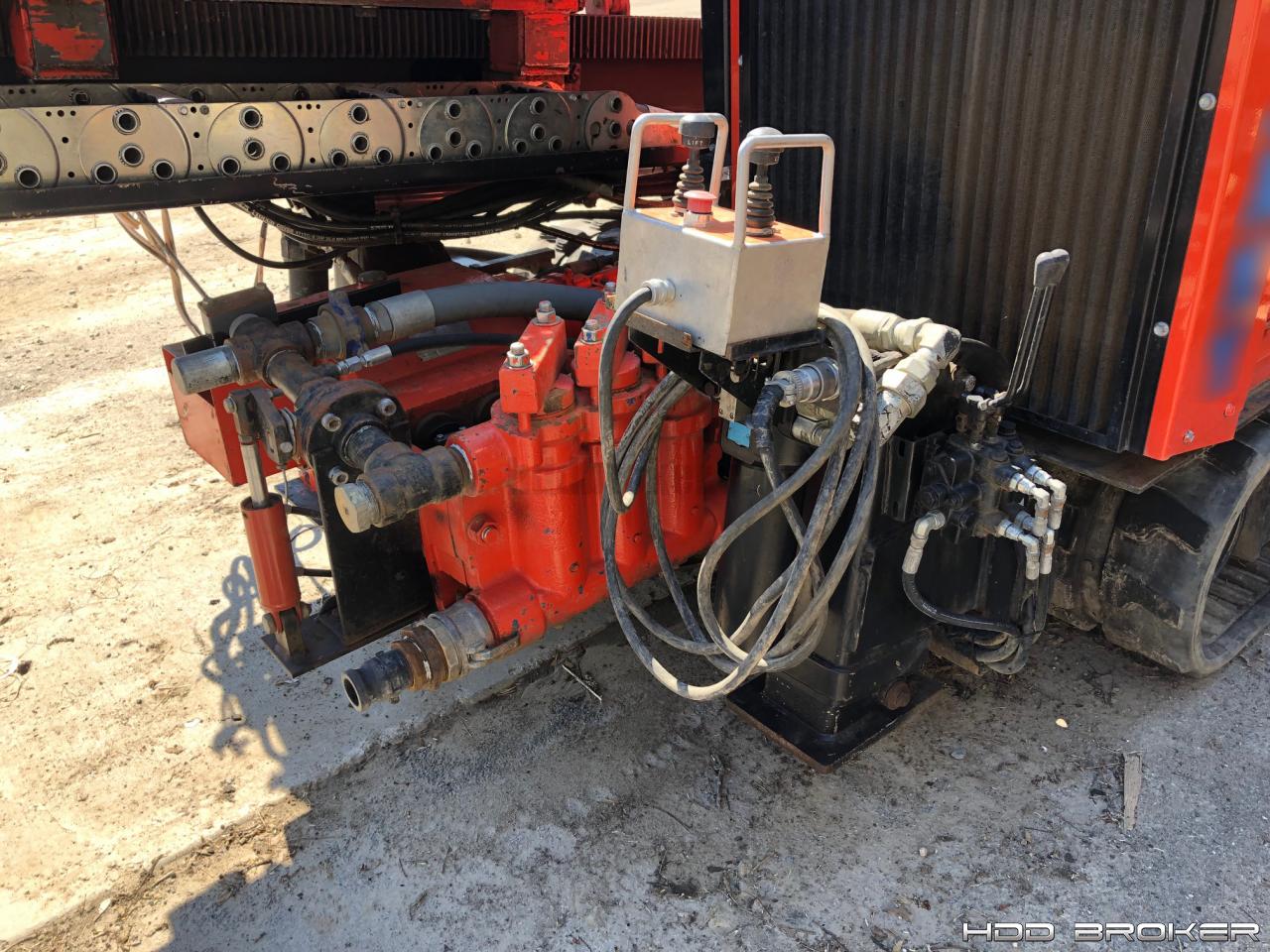

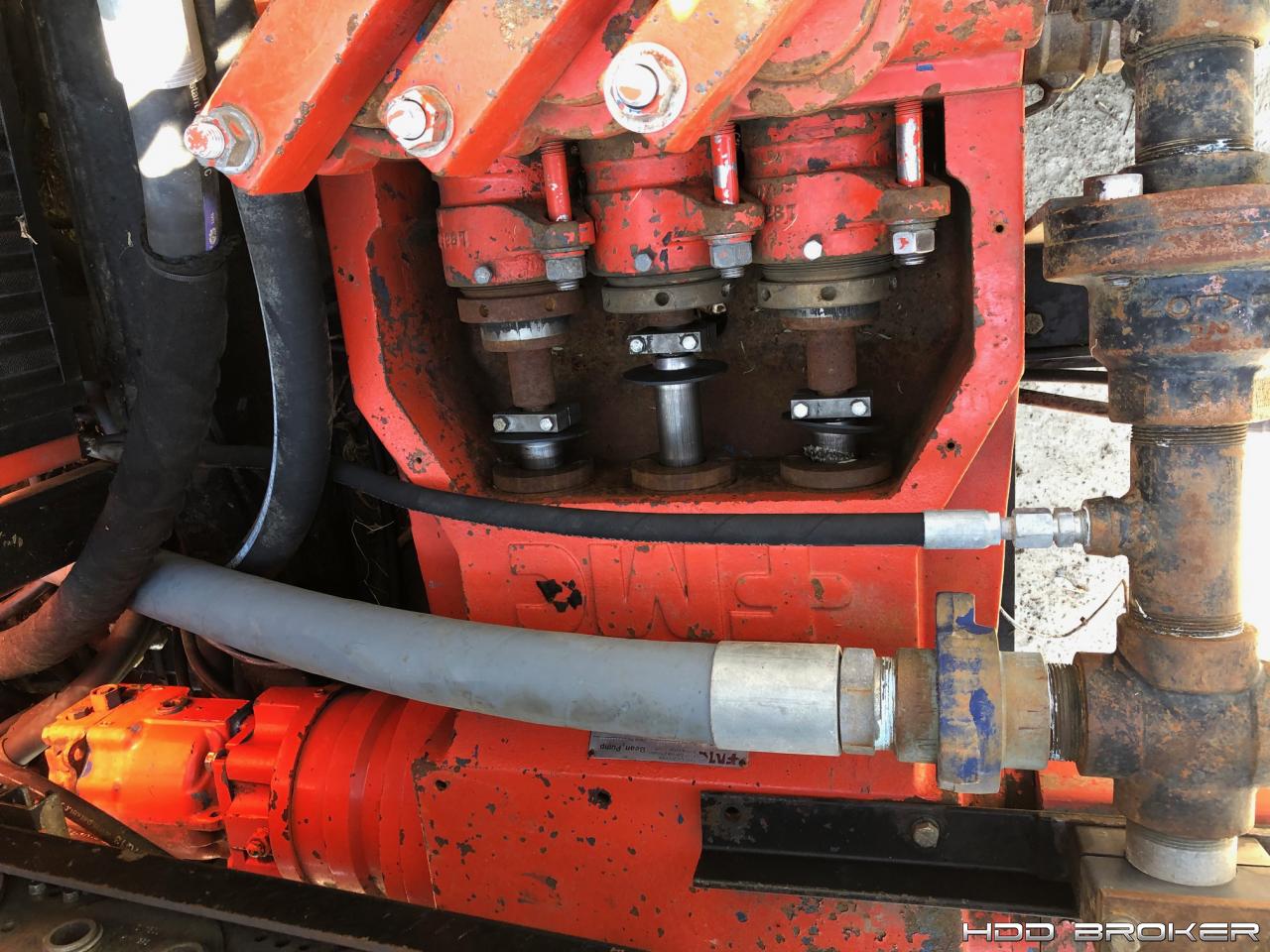

*On-Board Mud Pump - FMC-1224 (130 gpm)
*Rear Thrust Stabilizers
*Remote Hydraulic Cooler with Manual Override
*"Turbo" Carriage speed feature - for tripping out of the hole

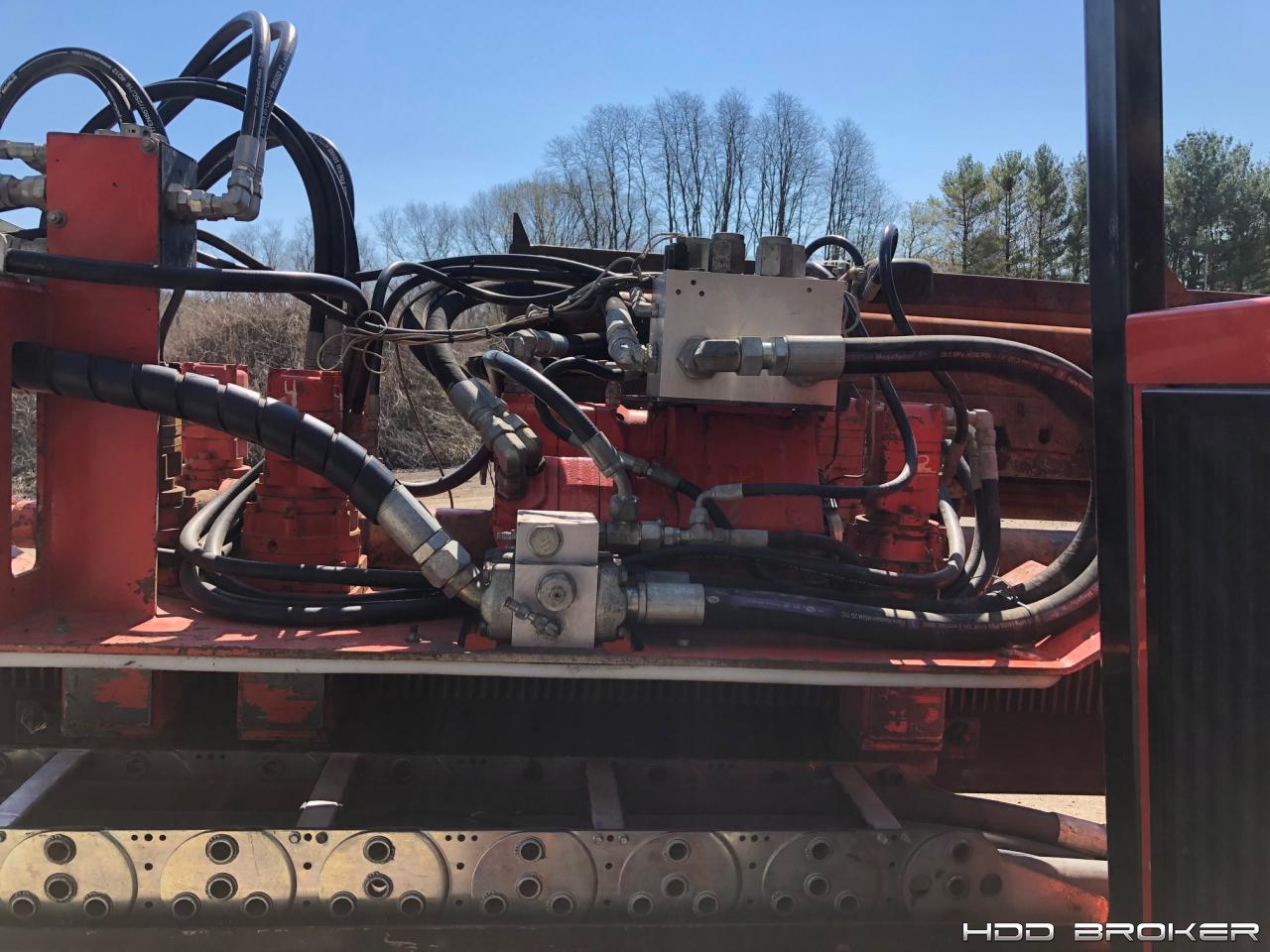

*Separate Hydraulic Pumps for Carr./Rot./Mud Pump - Three Total
*Machine Weight: 24,700 lbs
*Length: 27 feet
*Width: 8 foot 4 inches
*Height: 9 foot 6 inches
